Ref. 5515GW

Flush connection box in hollow partition. Ø 150 mm. Round cover with plastic claw. With central screw.

Flush connection box in hollow partition. Ø 150 mm. Round cover with plastic claw. With central screw.Depth 46 mm. 1 input for tube Ø 25 and 4 inputs for tube Ø 32 mm.


Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)

Add to zip Added to zip
Add to my downloads
Added to my downloads
More info
Add to zip Added to zip
Add to my downloads
Added to my downloads
More info

Complementary products

Features

Enclosure type Connection and derivation
Installation method For hollow wall.
Use Domestic / Tertiary
Location type Inside
Dimensions inside (mm) (Width x Height x Depth) Ø 150x46
Case material Insulation
Case color Blue
Cap color White
Ticket type Unfathomable
No. of inlets and size (mm) 14xØ25, 4xØ32
Lid closure system Metal screw
Fixing system to the hollow partition. Metal claw
With grommets at the bottom to fix the tubes or cables with cable ties, quantity Yes

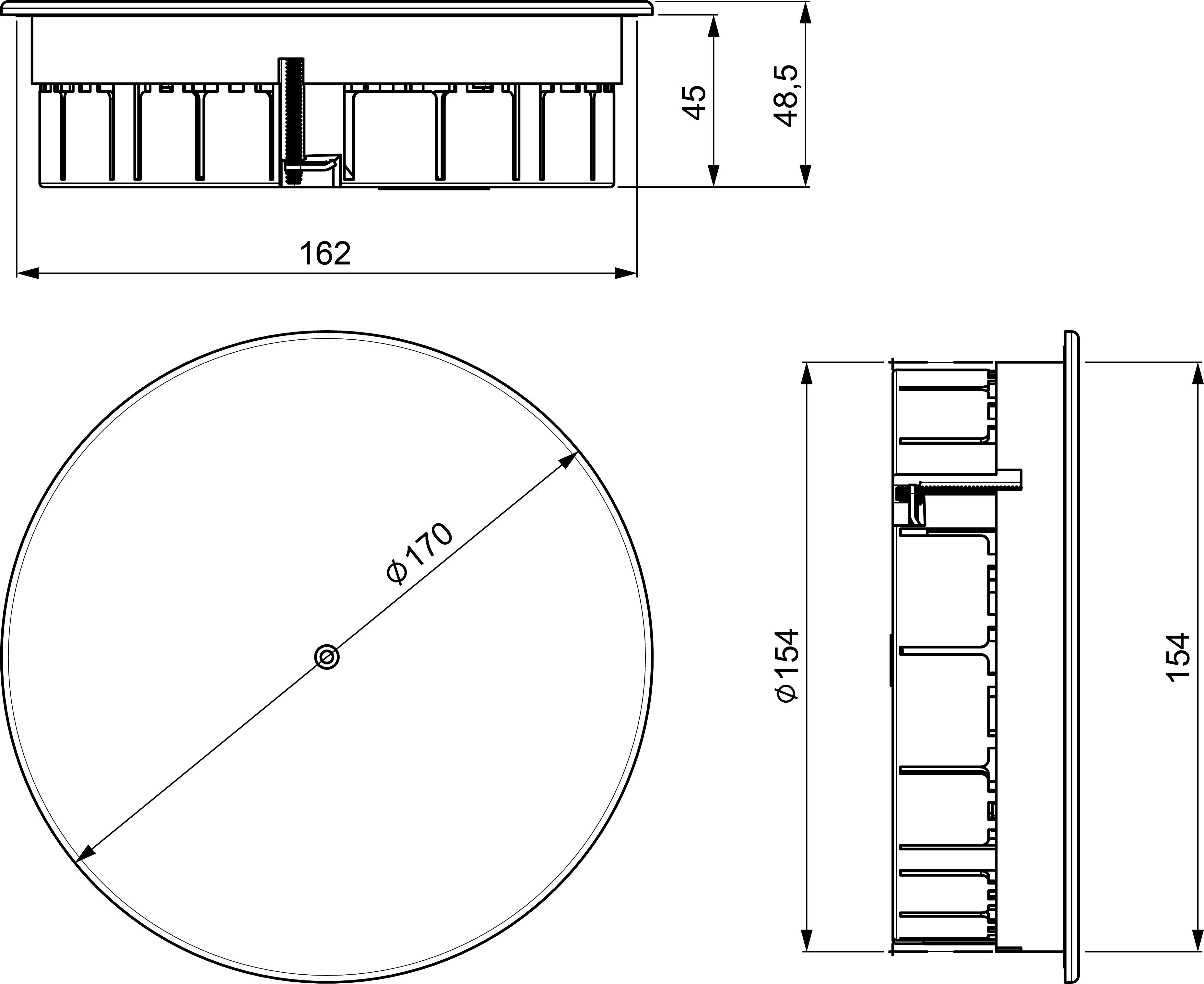

sketch

Technical data and regulation

Technical data

Fire resistance (GWEPT) 850 ºC
Heat resistance (Ball pressure) 70 ºC
Ambient operating temperature -5 ºC ; +60 ºC
Work stress 400 Vac
Free of halogens Yes

Regulations

CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60670-1:2022
UNE- EN 60670-22:2007
According to REBT Yes
CB certificate Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes

Sustainability

According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).

Logistics and packaging

Unit EAN code 8423220239470
EAN code container 8423220204690
EAN code packaging 18423220204697
Units packaging 4
Units carton 72
Pallet Units 1080
Packaging Measures cm 59,5x59,5x39,5
Unit weight (g) 155
Container Weight (Kg) 0,63
Packaging Weight (Kg) 12,50
Tariff code 39259010
