Ref. MUR63FNGU

Socket 2P+E (French), 16A 250V ~ + 2-way switch 10AX 250V~. Surface.

Socket 2P+E (French), 16A 250V ~ + 2-way switch 10AX 250V~. Surface. Graphite colour. Dimensions 138 x 72 x 42 mm. Inputs for 10x16, 10x20 and 16x16 mm mini-trunking. Screw connection.


Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)

Add to zip Added to zip
Add to my downloads
Added to my downloads
More info
Add to zip Added to zip
Add to my downloads
Added to my downloads
More info

Complementary products

Features

Mechanism type switch + fixed base
Type of installation Surface
Nominal voltage 250V~ (50/60 Hz)
Connection type Screw connection
Mini trunking input Yes
Type of operation Rocker key
Dimensions 138 x 72 x 42
Monobloc (with frame included) Yes
Frame color Graphite

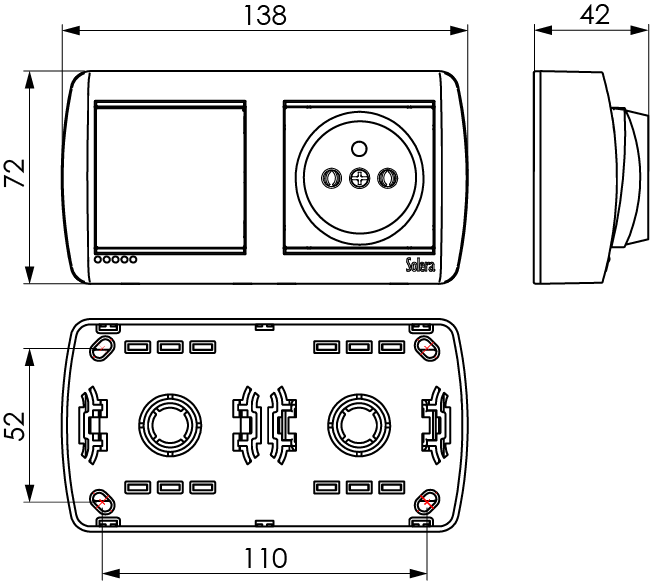

sketch

Technical data and regulation

Technical data

Protection Degree (IP) IP20
Fire resistance (GWEPT) 750/850 ºC
Installation temperature -5 ºC -> +60 ºC
Free of halogens Yes

Regulations

CE marking Yes
CMim marking Yes
According to Regulations NF C61-314
According to Regulations UNE/EN UNE-EN 60669-1:2018
UNE 20315-1-1:2017
UNE-20315-1-2:2017
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes

Sustainability

According to European Directive 2011/65/UE (RoHS) Yes (Complies with UNE EN 50581)
According to European Directive 2012/19/UE (RAEE2) Yes

Logistics and packaging

Unit EAN code 8423220263628
EAN code container 8423220263611
Units packaging 10
Units carton 120
Pallet Units 5760
Packaging Measurements cm 16x8x18
Packaging Measures cm 49,5x34x19
Unit weight (g) 65
Container Weight (Kg) 0,78
Packaging Weight (Kg) 10,01
Tariff code 85366990
