Ref. 324GW

Flush connection box in hollow partition. 250 x 250 mm. Cover with screws. Fixing system with nylon ties.

Flush connection box in hollow partition. 250 x 250 mm. Cover with screws. Fixing system with nylon ties.Depth 50 mm.


Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)

Add to zip Added to zip
Add to my downloads
Added to my downloads
More info
Add to zip Added to zip
Add to my downloads
Added to my downloads
More info

Complementary products

Features

Enclosure type Connection and derivation
Installation method For hollow wall.
Use Domestic / Tertiary
Location type Inside
Dimensions inside (mm) (Width x Height x Depth) 252x252x50
Case material Insulation
Case color Blue
Cap color White
Ticket type Unfathomable
No. of inlets and size (mm) 12xØ25, 12xØ30
Lid closure system Metal screw
Fixing system to the hollow partition. Nylon flange
With grommets at the bottom to fix the tubes or cables with cable ties, quantity Yes
With recessed hole marking system Yes

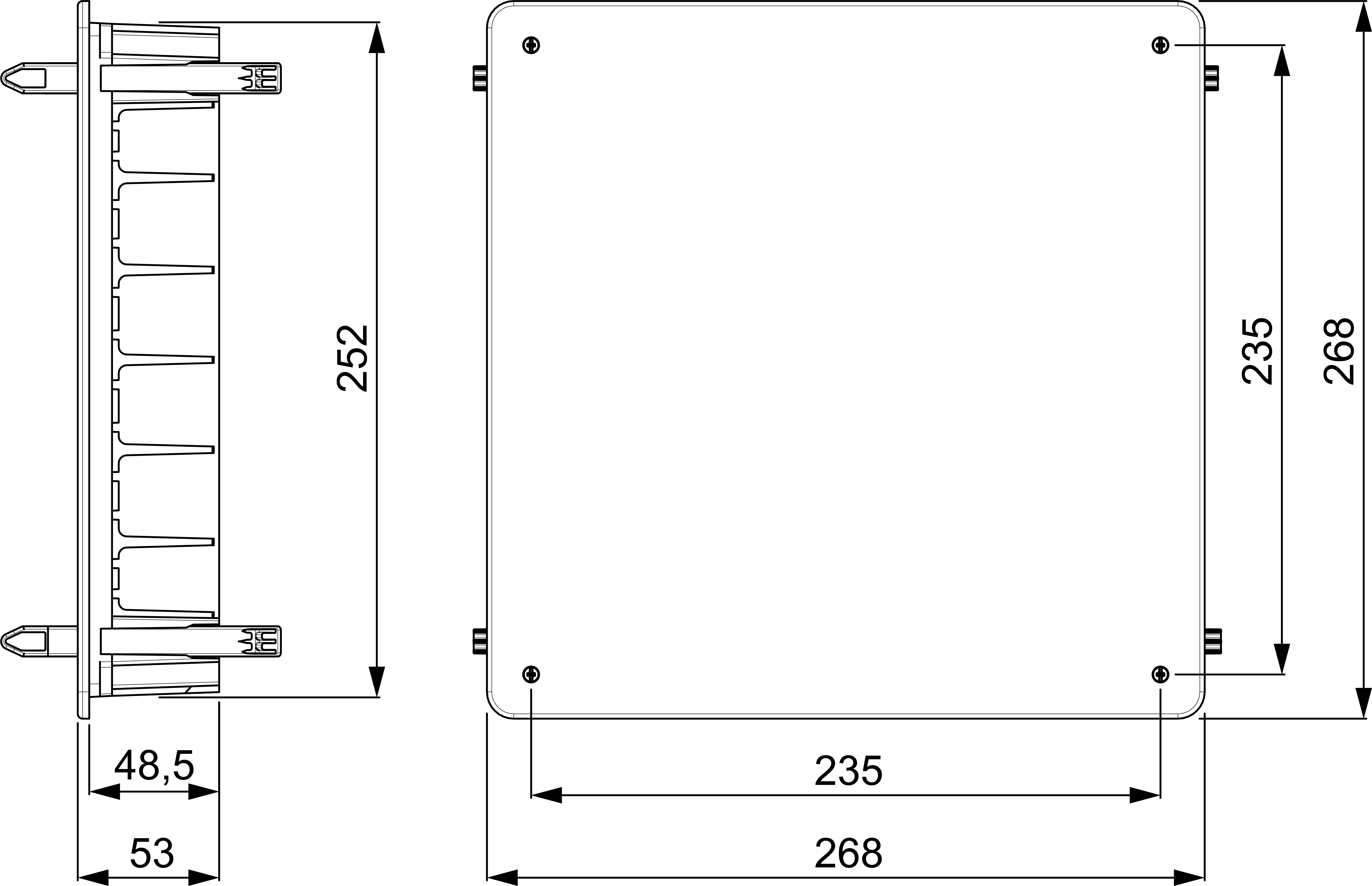

sketch

Technical data and regulation

Technical data

Fire resistance (GWEPT) 850 ºC
Heat resistance (Ball pressure) 70 ºC
Ambient operating temperature -5 ºC ; +60 ºC
Work stress 400 Vac
Free of halogens Yes

Regulations

CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60670-1:2022
UNE- EN 60670-22:2007
According to REBT Yes
CB certificate Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes

Sustainability

According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).

Logistics and packaging

Unit EAN code 8423220240322
EAN code container 8423220090583
EAN code packaging 18423220090580
Units packaging 2
Units carton 28
Pallet Units 420
Packaging Measures cm 59,5x59,5x39,5
Unit weight (g) 485
Container Weight (Kg) 0,97
Packaging Weight (Kg) 14,74
Tariff code 39259010
