CE marking
CMim marking
Free of halogens
According to European Directive 2011/65/UE (RoHS)

Ref. 8003F

Multiple socket of 3 sockets 2P+E, (French system) 16A 250V~.MÁX. 3680W

Multiple socket of 3 sockets 2P+E, (French system) 16A 250V~. MAX. 3680W. 850º C GWT. White colour. Easy connection access. Inputs for 7x12, 10x16, 10x20 and 12x12mm mini-trunking. Quick and easy removal lid. with holes for fixing by screws to the wall and orifice for fixing by means of flanges to tubes. . includes rubber grommet for cable and cover for mini trunking. Made of Polycarbonate. Serie L`ION.


Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)

Add to zip Added to zip
Add to my downloads
Added to my downloads
More info
Add to zip Added to zip
Add to my downloads
Added to my downloads
More info

Complementary products

Features

Type Multiple base
No. of bases 3
Basic characteristics 2P+E, 16A 250V~
Maximum power 3.680 W
Terminal system Screw connection
Mini trunking input Yes, for 7x12, 10x16, 10x20 and 12x12
Possibility of using hanger Yes
Possibility of using KIT-DIN35 Yes
Wall fixing holes Yes

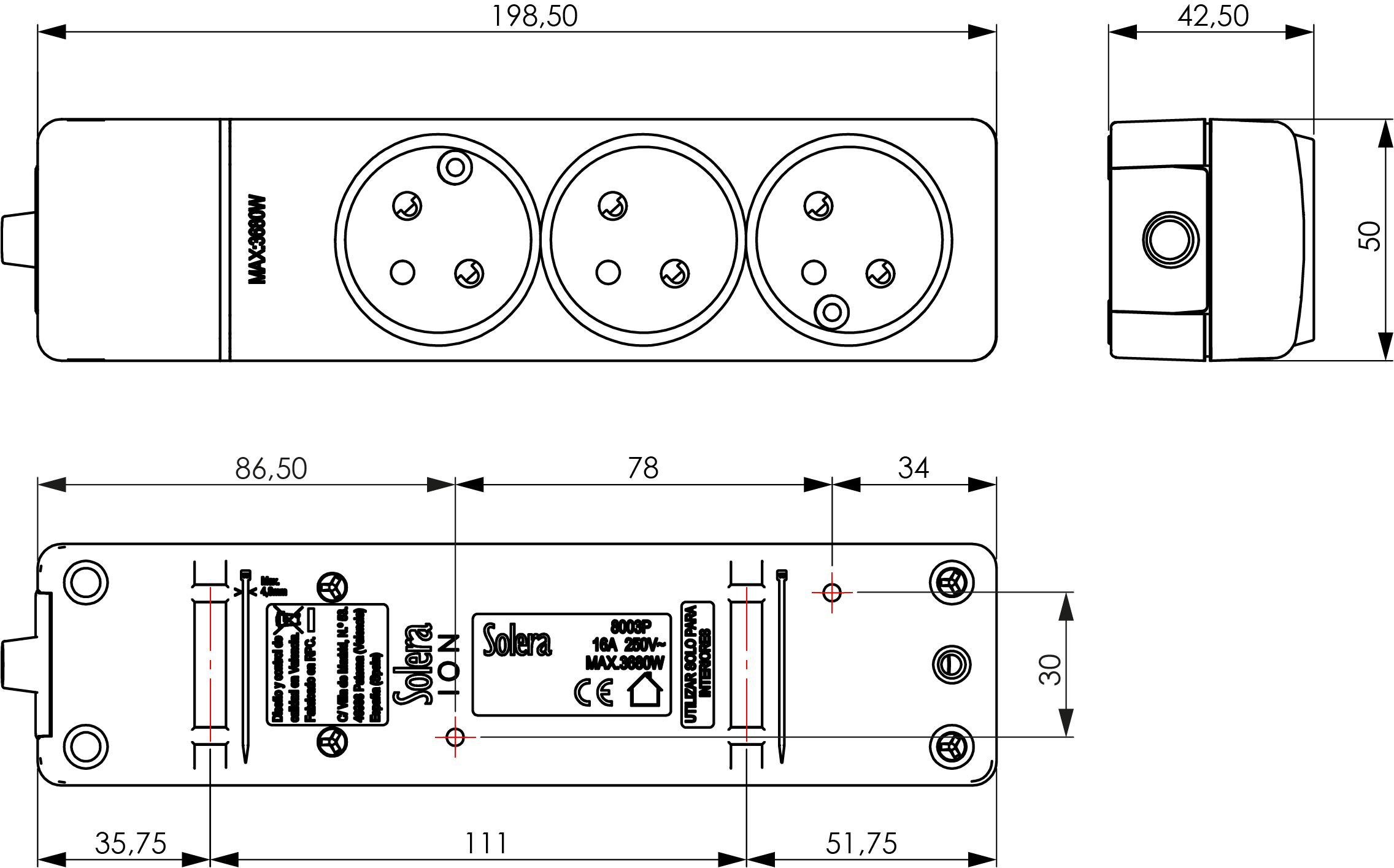

sketch

Technical data and regulation

Technical data

Protection Degree (IP) IP20
Fire resistance (GWEPT) 850 ºC
Heat resistance (Ball pressure) 125 ºC
Ambient operating temperature -5 ºC ; +60 ºC
Free of halogens Yes

Regulations

CE marking Yes
CMim marking Yes
According to Regulations NF C61-314
According to Regulations UNE/EN UNE-20315-1-1:2017; UNE-20315-1-2:2017
According to REBT Yes

Sustainability

According to European Directive 2011/65/UE (RoHS) Yes (Complies with UNE EN 50581)
According to European Directive 2012/19/UE (RAEE2) Yes

Logistics and packaging

Unit EAN code 8423220225947
EAN code container 8423220225701
EAN code packaging 18423220225708
Units packaging 16
Units carton 64
Pallet Units 2240
Packaging Measurements cm 29x19x18
Packaging Measures cm 59,5x20x37,5
Unit weight (g) 179
Container Weight (Kg) 3,38
Packaging Weight (Kg) 12,62
Tariff code 85366990
