6010
CE marking
Free of halogens
According to European Directive 2011/65/UE (RoHS)

Ref. 6010

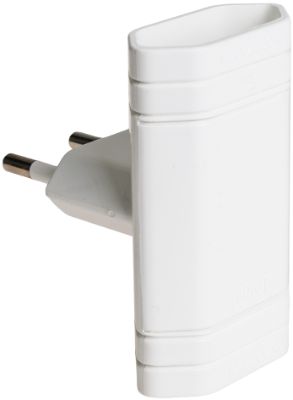

Double socket adapter 2P, 10A 250V~. White colour.

Double socket adapter 2P, 10A 250V~. White colour.MÁX. 2300W.


Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)

Add to zip Added to zip
Add to my downloads
Added to my downloads
More info
Download product sheet
Select the information you want to export:
Add to zip Added to zip
Add to my downloads
Added to my downloads
More info

Complementary products

MUR36U ERP60/2U 8013IL

Features

Type Adapter
No. of bases 2
Basic characteristics 2P, 10A 250V~
Maximum power 2.300 W

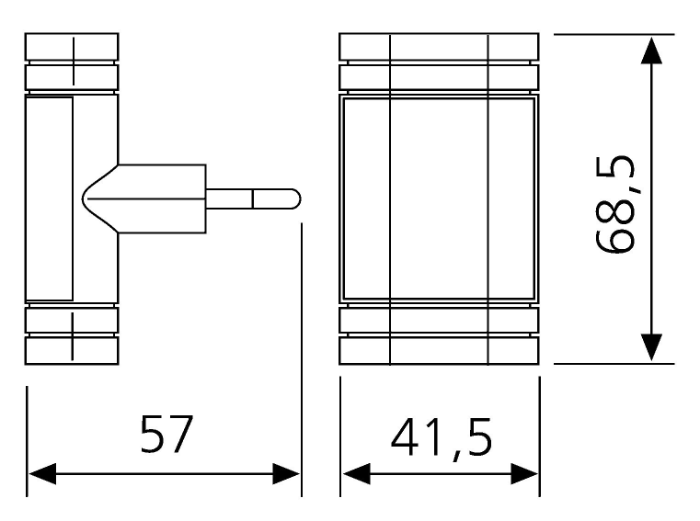

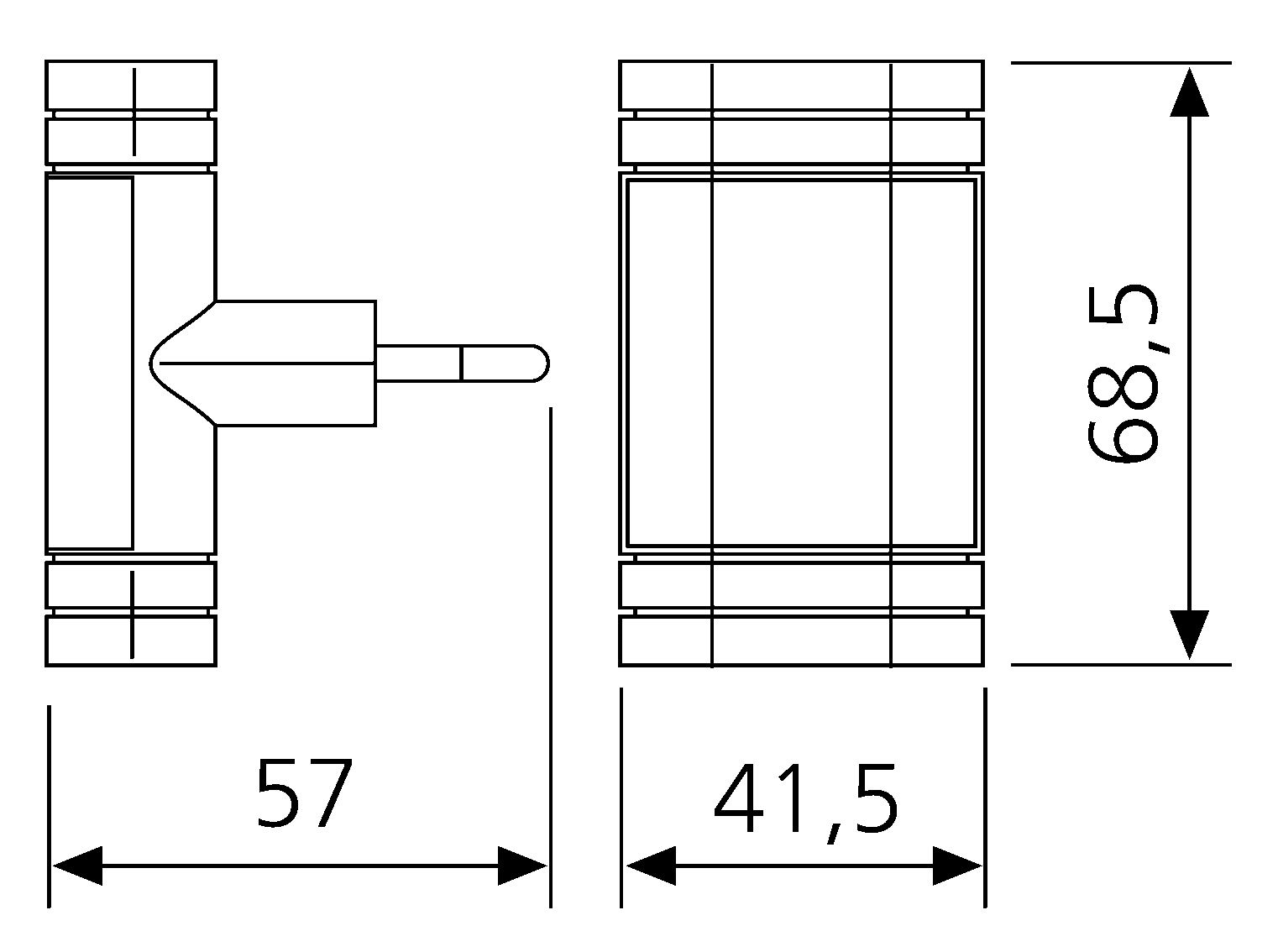

sketch

Technical data and regulation

Technical data

Fire resistance (GWEPT) 750 ºC
Heat resistance (Ball pressure) 70/125 ºC
Free of halogens Yes

Regulations

CE marking Yes
According to Regulations UNE/EN UNE 20315-2-5:2018
According to REBT Yes

Sustainability

According to European Directive 2011/65/UE (RoHS) Yes (Complies with UNE EN 50581)
According to European Directive 2012/19/UE (RAEE2) Yes

Logistics and packaging

Unit EAN code 8423220236769
EAN code container 8423220009318
EAN code packaging 18423220009315
Units packaging 30
Units carton 240
Pallet Units 8400
Packaging Measurements cm 17,8x19x14,3
Packaging Measures cm 59,5x20x37,5
Unit weight (g) 35
Container Weight (Kg) 1,13
Packaging Weight (Kg) 9,64
Tariff code 85366990

Documentation and downloads

Technical sheet Ref. 6010
UE Declaration of conformity Ref. 6010

Complementary products

MUR36U Socket 2P+E, 16A 250V~ + Double 2-way switch 10AX 250V~. Surface. ERP60/2U Double socket 2P+E, 16A 250V~. Monobloc. Flush. 8013IL Cable extension with 3 sockets 2P+E, 16A 250V~. With light switch. 1,5 m of cable.
