CE marking
UK marking
CMim marking
AENOR certificate
Free of halogens

Ref. 6625

Flush mechanism box for 1 module, 65 x 65 x 40 mm. Universal. Linkable. AENOR certified.

Flush mechanism box for 1 module, 65 x 65 x 40 mm. Universal. Linkable. AENOR certified.With 9 inputs for tube Ø 25 mm.


Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)

More info
More info

Complementary products

Features

Enclosure type Mechanism box
Installation method Flush in work
Use Domestic / Tertiary
Location type Inside
No. Modules (18 mm) 1
Dimensions gap (mm) (Width x Height x Depth) 65x65x40
Case material Insulation
Case color Black
Ticket type Unfathomable
No. of inlets and size (mm) 9xØ25
Linkable Vertically and horizontally

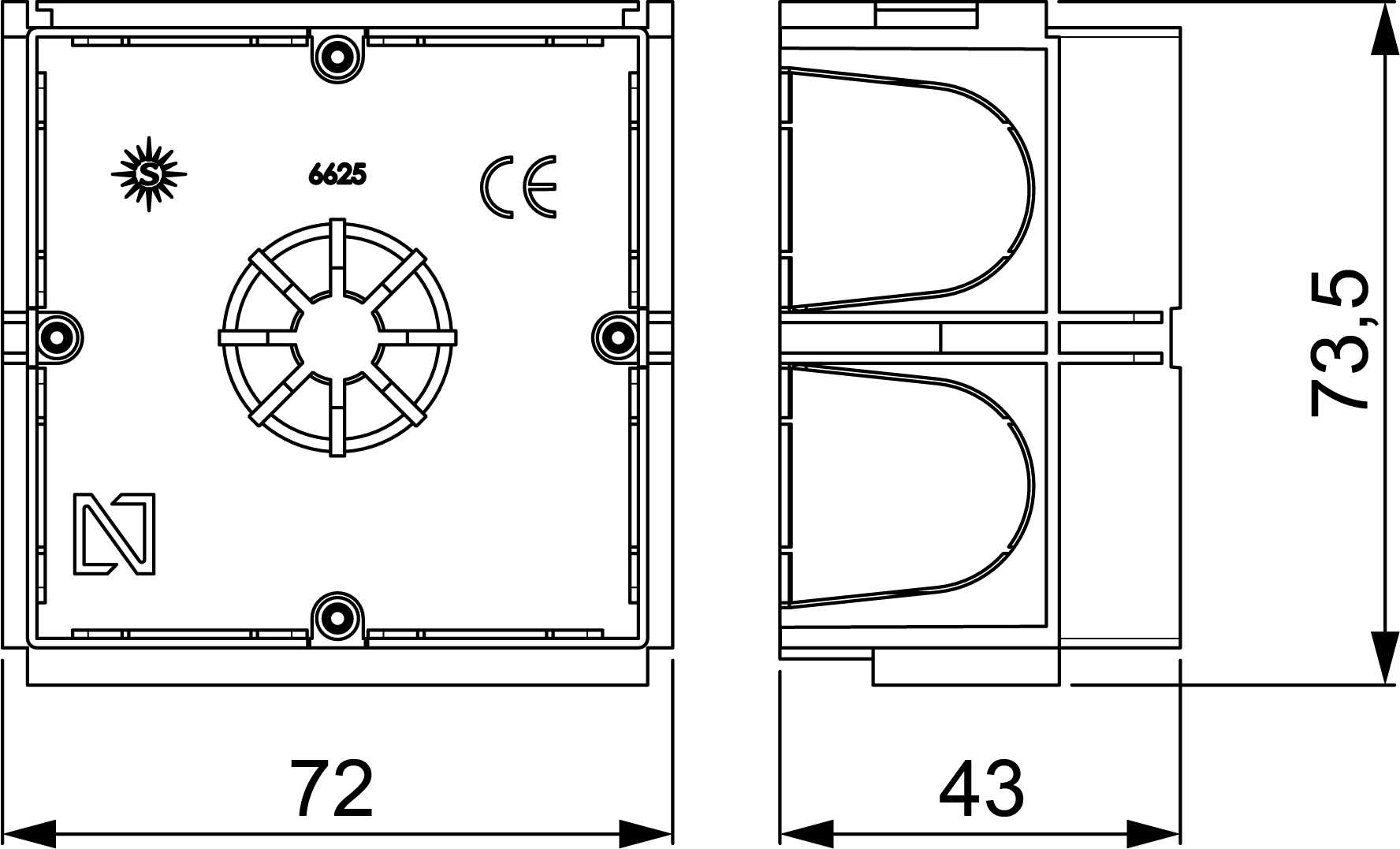

sketch

Technical data and regulation

Technical data

Insulation class Class II
Fire resistance (GWT) 650ºC
Heat resistance (Ball pressure) 70ºC
Installation temperature -5ºC -> +60ºC
Free of halogens Yes

Regulations

CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60670-1:2006
UNE-EN 60670-22:2007
According to REBT Yes
AENOR certificate Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes

Sustainability

According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).

Logistics and packaging

Unit EAN code 8423220237124
EAN code container 8423220005365
EAN code packaging 18423220005362
Units Container 20
Units Packaging 500
Pallet Units 7500
Packaging Measures cm 59,8x59x37,5
Unit weight (gr) 26
Container Weight (Kg) 0,53
Packaging Weight (Kg) 14,19
Tariff code 85371098
