Ref. 1308P-C5

Industrial wired cabinet of 8 modules, 16A.

Industrial wired cabinet of 8 modules, 16A.See features in current catalogue


Common applications: Industrial environments (factories, warehouses, etc.)

Add to zip Added to zip
Add to my downloads
Added to my downloads
More info
Add to zip Added to zip
Add to my downloads
Added to my downloads
More info

Complementary products

Features

Enclosure type Distribution
Installation method Surface
Use Industrial
Location type Exterior and interior
No. Modules (18 mm) 8
Modules per row 8
Metallic DIN profile Yes
Dimensions outside (mm) (width x height x depth) 215x500x160
Case material Insulation
Case color Grey (RAL7035)
Cap color Grey (RAL 7035)
Battens included Yes (Screw terminals)
Strip type Ground
No. of terminals and size 12x6 mm2 + 2x16 mm2
Ticket type With centricity points.
Sealable Yes
Linkable Vertically and horizontally
Lid closure system Ultra-fast metal screw
Door closing system Handle
Possibility of mounting with key / padlock Si (no incluido)
Possibility of putting lock Key
Possibility of mounting DIN rail Yes (included)

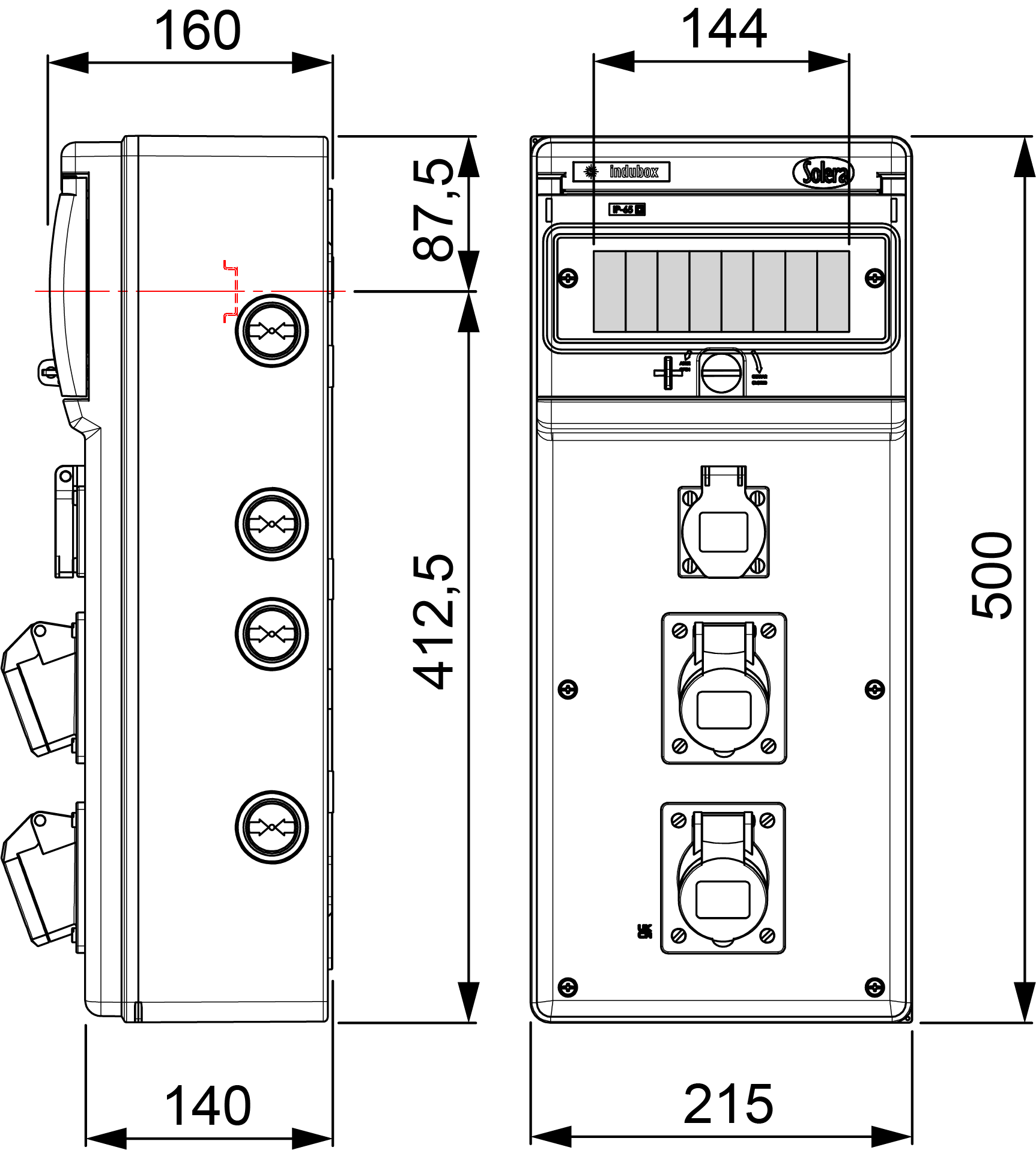

sketch

Technical data and regulation

Technical data

Protection Degree (IP) IP65
Protection Degree (IK) IK08
Impact shock resistance Strong
Insulation class Class II
UV resistance Yes
Free of halogens Yes
Suitable for saline environments Yes

Regulations

CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE-EN 62208: 2012
According to Regulations UNE/EN UNE-EN 61439-1: 2012
UNE-EN 61439-3: 2012
UNE-EN 61439-4: 2013
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes

Sustainability

According to European Directive 2011/65/UE (RoHS) The box does not correspond to the definition of Electrical and Electronical Equipment (EEE), but the included devices are affected individually.
According to European Directive 2012/19/UE (RAEE2) The box does not correspond to the definition of Electrical and Electronical Equipment (EEE), but the included devices are affected individually.

Logistics and packaging

Unit EAN code 8423220057128
EAN code container 8423220057128
EAN code packaging 18423220057125
Units packaging 0
Units carton 1
Pallet Units 99999
Tariff code 85371098
