Ref. 5550

Flush connection box. 500 x 160 mm Cover with screws.

Flush connection box. 500 x 160 mm Cover with screws.Depth 70 mm. 12 inputs for Ø 40 tube and 18 inputs for Ø 50 mm tube. Two partition walls.


Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)

Add to zip Added to zip
Add to my downloads
Added to my downloads
More info
Add to zip Added to zip
Add to my downloads
Added to my downloads
More info

Complementary products

Features

Enclosure type Connection and derivation
Installation method Flush in work
Use Domestic / Tertiary
Location type Inside
Dimensions inside (mm) (Width x Height x Depth) 500x160x70
Case material Insulation
Case color Black
Cap color White
No. of inlets and size (mm) 12xØ 40 y 18xØ 50
Lid closure system Metal screw
Possibility of mounting DIN rail Yes (not included)

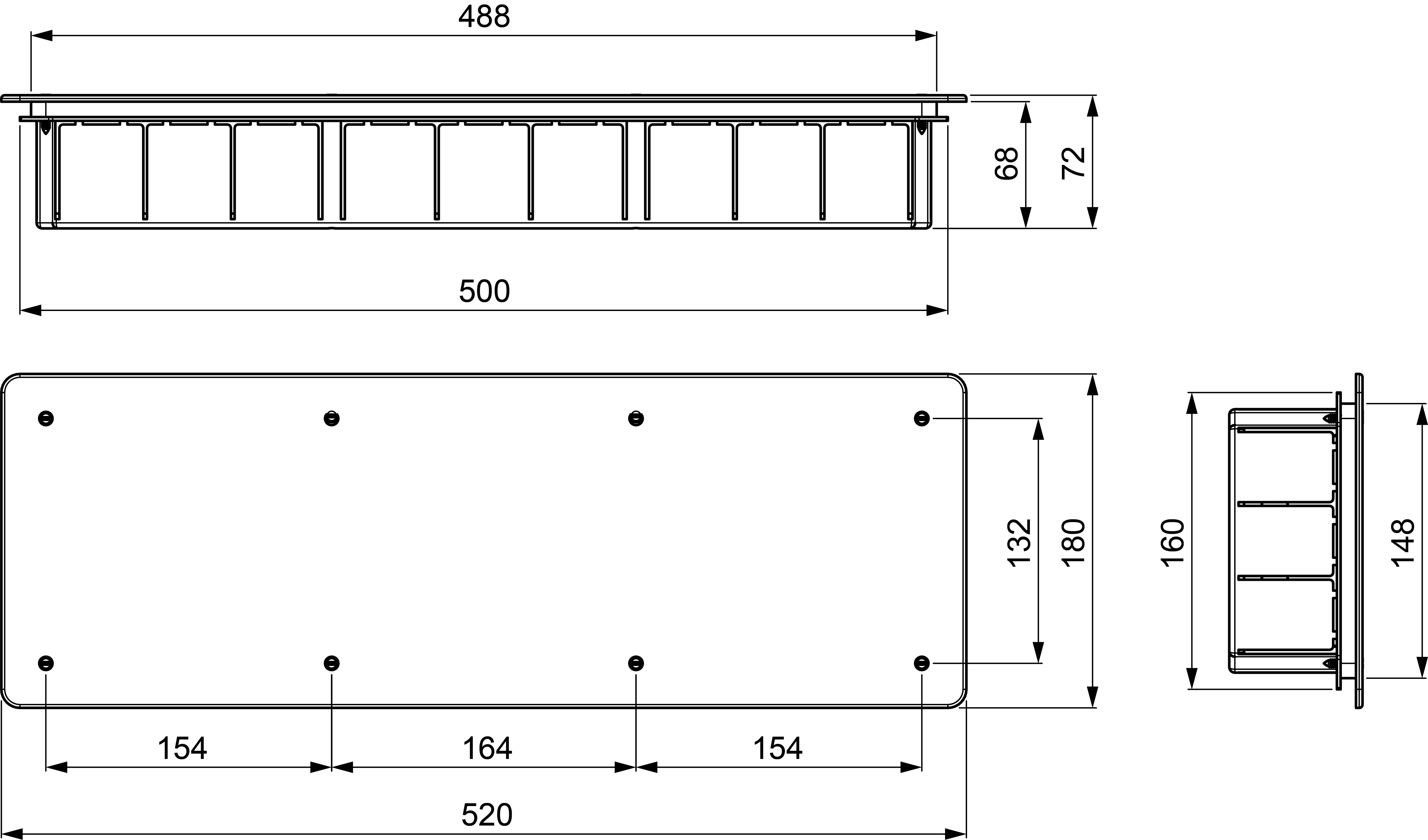

sketch

Technical data and regulation

Technical data

Impact shock resistance Medium
Insulation class Class II
Fire resistance (GWEPT) 650 ºC
Heat resistance (Ball pressure) 70 ºC
Work stress 400 Vac
Free of halogens Yes

Regulations

CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60670-1:2022
UNE- EN 60670-22:2007
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes

Sustainability

According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).

Logistics and packaging

Unit EAN code 8423220012004
EAN code container 8423220012004
EAN code packaging 18423220012001
Units packaging 1
Units carton 19
Pallet Units 285
Packaging Measures cm 59,8x59x37,5
Unit weight (g) 633
Container Weight (Kg) 0,64
Packaging Weight (Kg) 13,18
Tariff code 85371098
