Ref. 525

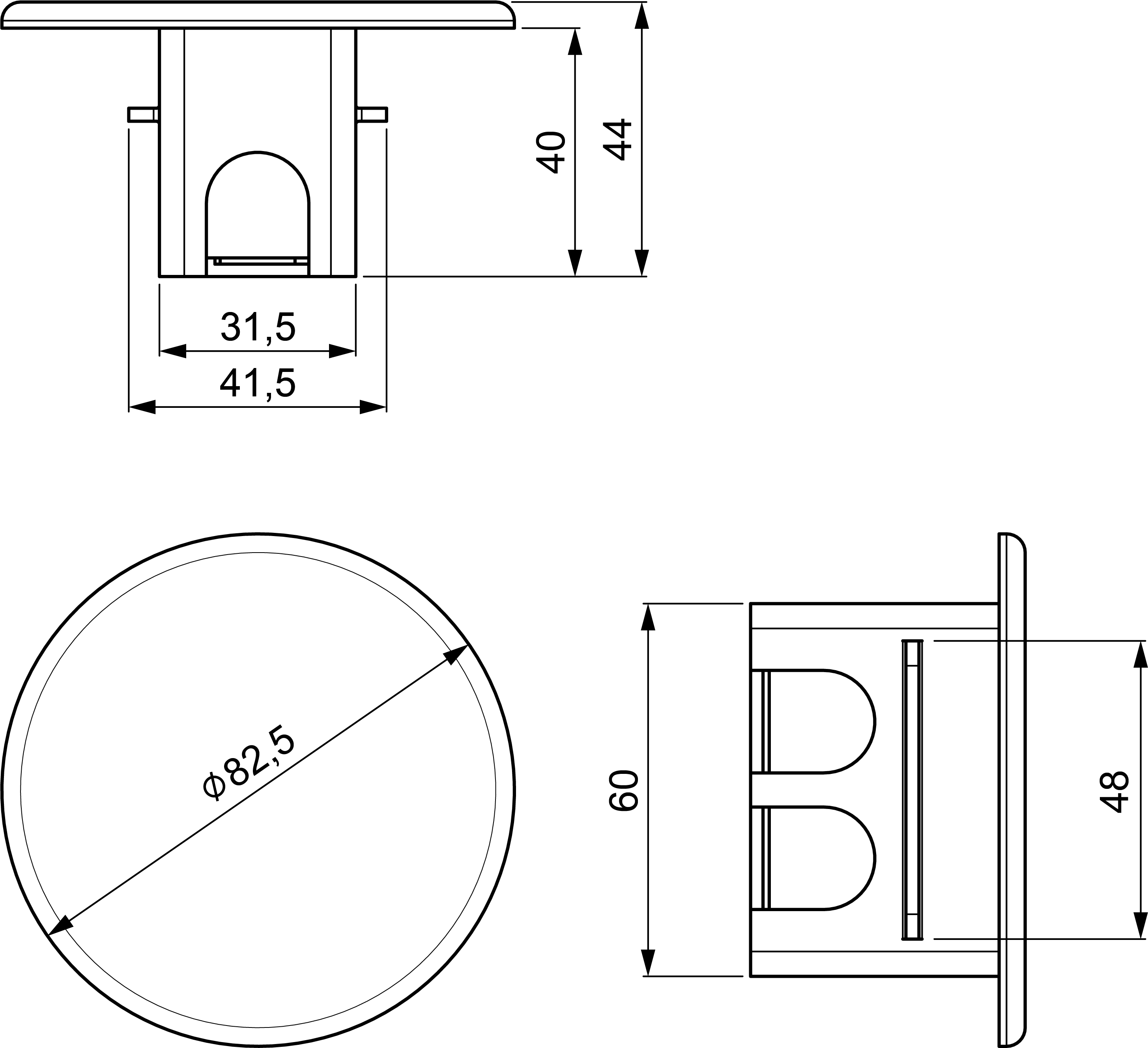

Flush connection box. 31 x 59 x 40 mm. Round cover with plastic claws.
Flush connection box. 31 x 59 x 40 mm. Round cover with plastic claws.Depth 40 mm. 7 inputs for tube Ø 16 mm.
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Enclosure type Connection and derivation
Installation method Flush in work
Use Domestic / Tertiary
Location type Inside
Dimensions inside (mm) (Width x Height x Depth) 31x59x40
Case material Insulation
Case color Black
Cap color White
No. of inlets and size (mm) 7xØ 16
Lid closure system Plastic claw
Technical data and regulation
Technical data
Impact shock resistance Medium
Insulation class Class II
Fire resistance (GWEPT) 650 ºC
Heat resistance (Ball pressure) 70 ºC
Work stress 400 Vca
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60670-1:2022
UNE- EN 60670-22:2007
UNE- EN 60670-22:2007
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).
Logistics and packaging
Unit EAN code 8423220240551
EAN code container 8423220057227
EAN code packaging 18423220057224
Units packaging 35
Units carton 140
Pallet Units 4900
Packaging Measurements cm 29x19x18
Packaging Measures cm 59,5x20x37,5
Unit weight (g) 338
Container Weight (Kg) 0,49
Packaging Weight (Kg) 69,25
Tariff code 85371098
