Ref. 6584CRN
Lampholder E-14. Screw connection. 2A 250V. Threaded body.

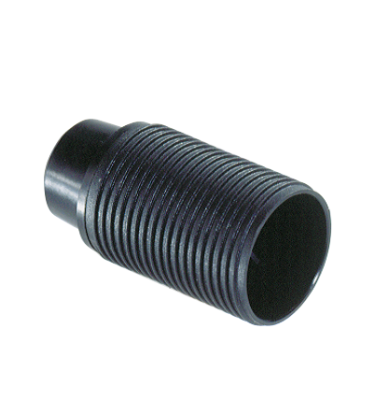

E14 screw lamp holder with black threaded thermoplastic body. Rated for 2A at 250V~, with screw terminal connection. It includes an M10-100 threaded entry with a safety stop and a locking screw in the cap to prevent unwanted rotation. Suitable for residential, commercial or decorative lighting applications.
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Common applications Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Material Thermoplastic
Tension 250 V~
Electricity 2 A
Fixation System M10/100
Threaded body Yes
Maximum power 80W
Color Black
Threaded stud length in glands sí
Technical data and regulation
Technical data
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60238:2018
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) Yes
According to European Directive 2012/19/UE (RAEE2) Yes
According to Regulations (RoHS) UNE-EN IEC 63000:2022
Logistics and packaging
Unit EAN code 8423220237070
EAN code container 8423220000438
EAN code packaging 18423220000435
Units packaging 45
Units carton 360
Pallet Units 17280
Packaging Measurements cm 14,5x19x8,8
Packaging Measures cm 37,5x20x30
Unit weight (g) 21,2
Container Weight (Kg) 1,0181
Packaging Weight (Kg) 8,4768
Tariff code 85366110
