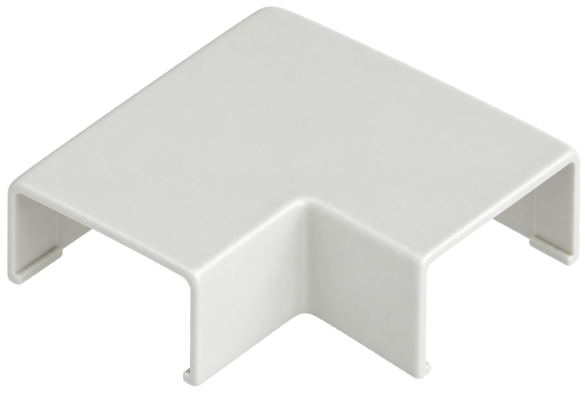

Ref. AP60100
Flat corner for 60x100 trunking.
Flat corner for 60x100 trunking.
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Installation method Surface
Use Domestic / Tertiary
Location type Inside
Dimensions (Height x Width - mm) 60 x 100
Composition Loose lid
Material PVC (M1)
Technical data and regulation
Technical data
Protection Degree (IP) IP40
Fire resistance (GWEPT) 850 ºC
Work temperature Code: 321
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 50085-1:2006
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).
Logistics and packaging
Unit EAN code 8423220238121
EAN code container 8423220019225
EAN code packaging 18423220019222
Units packaging 6
Units carton 24
Pallet Units 1176
Packaging Measurements cm 23,7x15,4x19
Packaging Measures cm 49x23x31,5
Unit weight (g) 48
Container Weight (Kg) 0,31
Packaging Weight (Kg) 1,68
Tariff code 85366990
