Ref. 5502GW

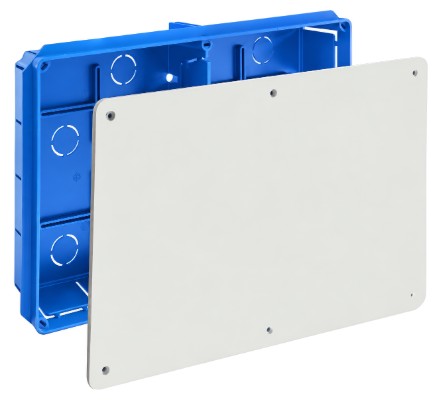

Flush connection box. 300 x 200 x 60 mm Cover with screws.
Flush connection box. 300 x 200 mm Cover with screws.Depth 60 mm. 20 inputs for Ø 40 tube. One partition walls.
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Enclosure type Connection and derivation
Installation method Flush in work
Use Domestic / Tertiary
Location type Inside
Dimensions gap (mm) (Width x Height x Depth) 300x200x60
Case material Thermoplastic
Case color Black
Cap color White
No. of inlets and size (mm) 20xØ 40
Lid closure system Metal screw
Possibility of mounting DIN rail Yes (not included)
Common applications Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Technical data and regulation
Technical data
Impact shock resistance Medium
Insulation class Class II
Fire resistance (GWEPT) 650 ºC
Heat resistance (Ball pressure) 70 ºC
Work stress 400 Vac
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60670-1:2022
UNE- EN 60670-22:2007
UNE- EN 60670-22:2007
In accordance with the Low Voltage Electrotechnical Regulations (REBT) Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).
Logistics and packaging
Unit EAN code 8423220011984
EAN code container 8423220011984
Units packaging 1
Units carton 31
Packaging Measures cm 59,5x39,5x59,5
Unit weight (g) 432,2
Container Weight (Kg) 0,4372
Packaging Weight (Kg) 14,6832
Tariff code 85371098
