Ref. 1332P-CPI2175

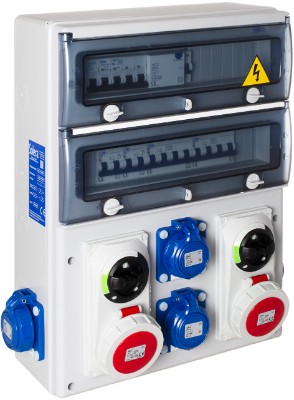

40A IP67 monophase and triphase site panel with protections
Pre-wired site distribution board with 32 modules, set up for three-phase distribution with 16 A industrial outlets and IP67 Schuko sockets. External dimensions: 362 x 500 x 160 mm. Includes internal ferruled wiring. Manufactured in accordance with EN 61439-1:2012.
- 1 residual current circuit-breaker (RCCB) 4P 40 A type AC 30 mA
- 1 miniature circuit breaker (MCB) 4P 40 A 10 kA
- 2 miniature circuit breakers (MCB) 4P 16 A 6 kA
- 2 miniature circuit breakers (MCB) 2P 16 A 6 kA
- 2 interlocked industrial sockets 3P+N+E 16 A IP67
- 4 Schuko 2P+E 16 A 250 V IP67 sockets
- 1 3P+N AC transient surge protective device
- 1 emergency pushbutton NC
- 1 undervoltage release coil 230 V
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Enclosure type Distribution
Installation method Surface
Use Industrial
Location type Exterior and interior
Metallic DIN profile Yes
Dimensions outside (mm) (width x height x depth) 362x500x160
Case material Insulation
Case color Grey (RAL7035)
Cap color Grey (RAL 7035)
Door color Fume
Battens included Yes (Screw terminals)
Strip type Ground
No. of terminals and size 12x6 mm2 + 2x16 mm2
Ticket type With centricity points.
Fixation System (For surface) Ref.KIT1300SOP (not included). For all INDUBOX except for Ref. 1303 and 1304
Sealable Yes
Linkable Vertically and horizontally
Lid closure system Ultra-fast metal screw
Door closing system Handle
Possibility of mounting strips Yes (included)
Possibility of mounting with key / padlock Si (no incluido)
Possibility of putting lock Yes (not included)
Possibility of mounting DIN rail Yes (included)
Common applications Industrial environments (factories, warehouses, etc.)
Technical data and regulation
Technical data
Protection Degree (IK) IK08
Impact shock resistance Strong
Insulation class Class II
UV resistance Yes
Free of halogens Yes
Suitable for saline environments Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 61439-4: 2013
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The box does not correspond to the definition of Electrical and Electronical Equipment (EEE), but the included devices are affected individually.
According to European Directive 2012/19/UE (RAEE2) The box does not correspond to the definition of Electrical and Electronical Equipment (EEE), but the included devices are affected individually.
Logistics and packaging
EAN code container 8423220276505
Units packaging 1
Units carton 1
Unit weight (g) 7620
Container Weight (Kg) 7,63
Packaging Weight (Kg) 7,63
Tariff code 85381000
