Ref. S24CM4A63

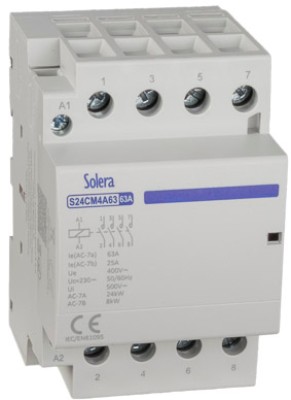

Modular contactor 4P 63A 4NO
Modular contactor 4P, 63A, 4NO contacts and 3-module format. Coil voltage 230V~ and rated voltage 240/415V AC (50/60 Hz).
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Common applications Industrial environments (factories, warehouses, etc.)
Modular device type Contactor
No. of poles 4P
Modules (18 mm) 3
Network type Alternating current (ac)
Fixation 35mm DIN rail
Contacts 4NO
Nominal current 63A
Nominal voltage 230 Vca - (50/60 Hz)
Technical data and regulation
Technical data
Fire resistance (GWEPT) 960 ºC
Ambient operating temperature -5 ºC ; +40 ºC
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60947-4-1:2021
According to Regulations IEC IEC 61095:2009
In accordance with the Low Voltage Electrotechnical Regulations (REBT) Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) Yes
According to European Directive 2012/19/UE (RAEE2) Yes
According to Regulations (RoHS) UNE-EN IEC 63000:2022
Logistics and packaging
Unit EAN code 8423220289512
EAN code container 8423220288584
EAN code packaging 18423220288581
Units packaging 4
Units carton 40
Pallet Units 1000
Packaging Measurements cm 22x8,5x8
Packaging Measures cm 47x24x18
Unit weight (g) 175
Container Weight (Kg) 0,75
Packaging Weight (Kg) 7,845
Tariff code 85362010
