Ref. CSG5

Floor 8x50 mm trunking. Self-adhesive fixing.

Floor 8x50 mm trunking. Self-adhesive fixing.2 m. length. PVC material (M1) insulator "flame retardant". Grey colour.


Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)

Add to zip Added to zip
Add to my downloads
Added to my downloads
More info
Add to zip Added to zip
Add to my downloads
Added to my downloads
More info

Complementary products

Features

Installation method Surface (ground)
Use Domestic / Tertiary
Location type Inside
Fixing method Self-adhesive Base
Dimensions (Height x Width - mm) 8 x 50
Useful surface (mm²) 340
Compartment One
Composition Base + lid
Section length 2 m
Material PVC (M1)

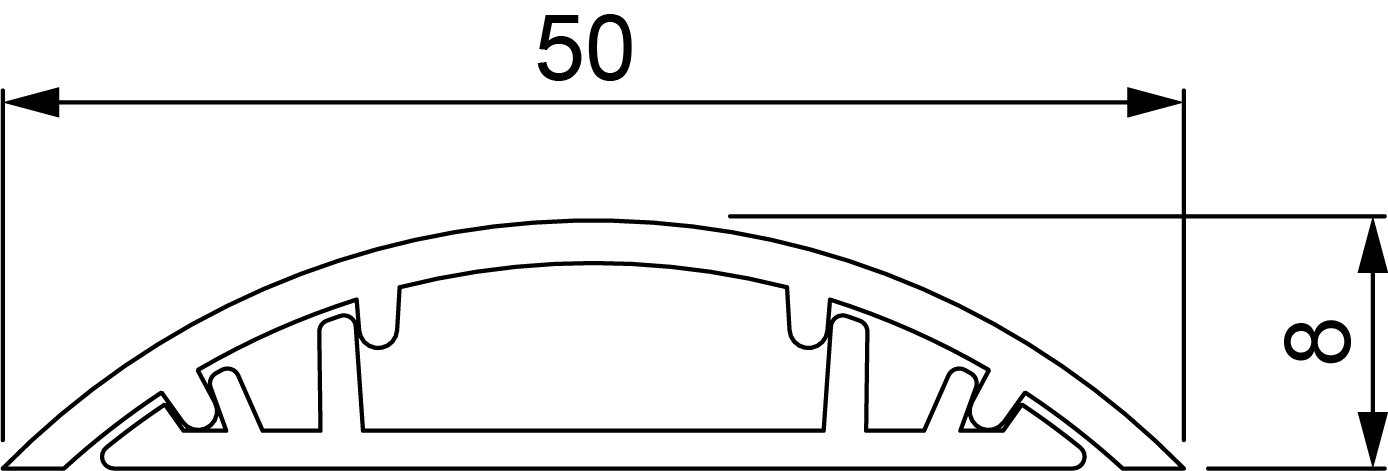

sketch

Technical data and regulation

Technical data

Protection Degree (IP) IP40
Fire resistance (GWEPT) 850 ºC
Work temperature Code: 321

Regulations

CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 50085-1:2006
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes

Sustainability

According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).

Logistics and packaging

Unit EAN code 8423220070028
EAN code container 8423220070028
EAN code packaging 18423220070025
Units packaging 0
Units carton 60
Pallet Units 1500
Packaging Measures cm 200,2x12,5x23,5
Packaging Weight (Kg) 21,29
Tariff code 39259020
